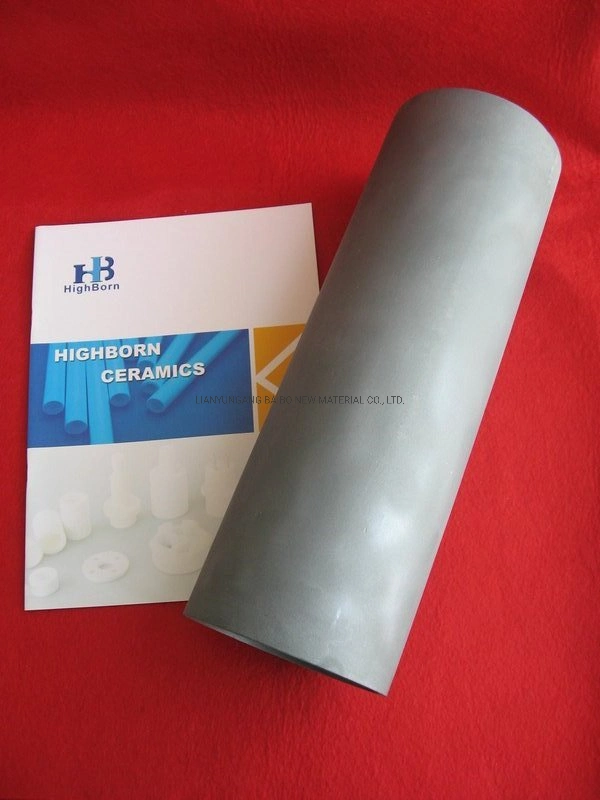

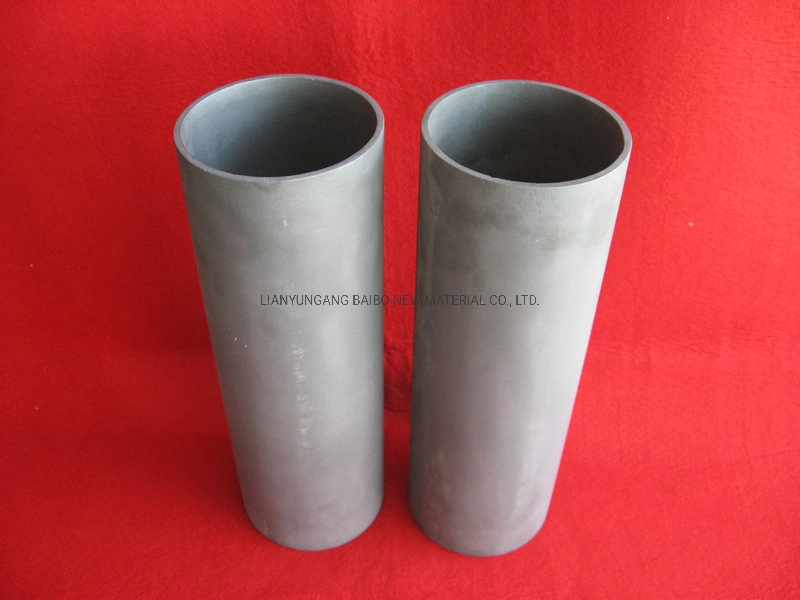

Product Name | RBSIC Reaction Sintered Silicon Carbide Ceramic Liner / Tube / Bushing |
Material | Silicon carbide |
Color | Grey |
Size | As per request |
Type | RSSIC/SSIC |
| Payment | T/T,Western Union,Online payment by credit card are avilable |
Thransport | Air transport: 5-10 days; Ocean shipping: About one month. |
Delivery Time | 1.Stock:delivery within 3-5 days after receiving your payment. 2. OEM/ODM:The normal Lead time is 15-45 days, which depends on your quantiy. |
Silicon carbide (SiC)
Is a lightweight ceramic material with high strength properties comparable to diamond. It has excellent thermal conductivity,
low thermal expansion, and is resistant to corrosion from acids.
Silicon carbide is an excellent ceramic material for applications requiring good erosion and abrasive resistance.
Applications:
1.pumps, mixers, blenders, agitators, refrigeration compressors, blowers, fans,
and other rotary shaft equipment
2.pulp and paper, food processing, water, wastewater,
refrigeration, chemical processing,and other demanding applications.
SiC properties:
a. high temperature strength
b. superior thermal shock resistance
c. excellent wear resistance
d. good fracture toughness
e. mechanical fatigue and creep resistance
f. Excellent non-wetting property with good oxidation resistance
Sic seal rings main performance as belows:
Item | Unit | Sic | SSIC |
| Purity | % | ≥90 | ≥98 |
| Density | g/cm3 | 3.05 | 3.1 |
| Shore Hardness | HS | 110-125 | 120-130 |
| Elastic Modulus | MPa | 4.12x105 | 4.10x10s |
| Poisson Ratio | 0.15 | 0.16 | |
| Tensile Strength | MPa | 2.75x102 | 2.8x102 |
| Bending Strength | MPa | 4.41x102 | 4.9x102 |
| Compression Strength | MPa | 2.94x103 | 3.0x102 |
| Thermal Conductivity | W/m.k | 141 | 147 |
Coefficient of Thermal Expansion | l/ºC | 4.3x10-6 | 4.0x10-6 |
| Heat Resistance | 1600C | 165CTC | |
| Thermal Impact Coefficient | cal/cm.sec | 46.5 | 200 |
| Tolerance | mm | -0.02--+0.02 | -0.02--+0.02 |
| Acid Resistance | 5 times higher than the usual TC | Resist al chemical media |
Is a leading high-tech ceramic development and production enterprises.
Our ceramic products are widely used in various fields of automotive, metallurgy, machinery, electronic & electrical, food, chemical, medical and so on. With experienced engineers and talented workers, we are able to evaluate projects and drawings properly, make valuable suggestion, supply satisfying products. Our materials including:
- Alumina ceramic tube, alumina parts( 95% 96% 99% 99.5% 99.7% Al2O3 )
- Zirconia cermaic ( Yttria stabilized ZrO2 )
- Silicon Nitride ( GPS Gas pressure sintered & Hot pressed Si3N4 )
- Silicon carbide
- Boron Carbide ( B4C )
- Boron Nitride ( Hot pressed BN )
- Machinable Glass Ceramic
- Steatite, cordierite
Q:Are you a trading company or a manufacturer?
A:We are professional manufacturer which has almost 10 years of experience in this industry.
Q:Can you produce according to the samples?
A:Yes,we can produce by your samples or technical drawings.
Q:Would it be possible for us to visit your factory?
A:Sure,we welcomed our customers visit our factory in any time.
Q:Will your company supply samples?
A:Yes,the sample expense will be deducted from the value of your order.
Q:What's your payment terms?
A:T/T, L/C, Western Union, Money Gram, are available for us.
Q:Delivery time for my order?
A:Within 7-15 working days for your sample order; 20 working days for your bulk order( It depends on the models and quantity you are going to order)
