Test standard:
Comply with IEC60529/2001 "Degrees of protection provided by enclosures(IP Code)", GB4208-2008 "enclosure protection class (IP Code)" 14.2.3, 14.2.4 and FIG.4 and GB7000.1 "lamps and lanterns part I: general requirements and tests" 9.2.4 and 9.2.5.
Application :
The main function of the equipment is for the electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products in the simulated rain conditions, the physical and other related properties of the test.

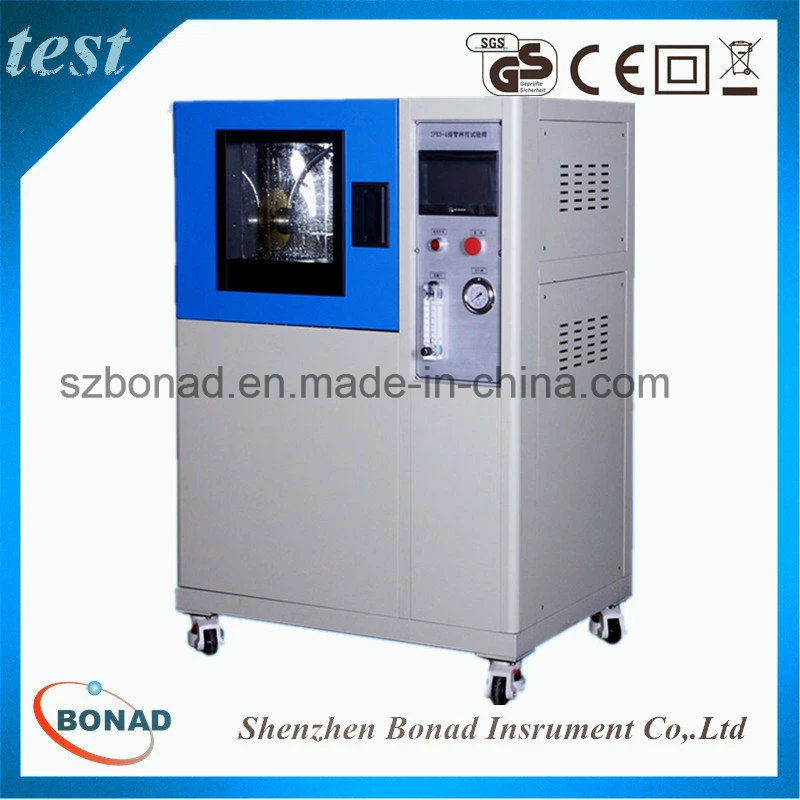

Product picture:
Parameter:
No. | Model | BND-IPX34B-R200 | BND-IPX34B-R400 | BND-IPX34B-R600 |
1 | Swing Pipe size(mm) | R200 | R400(Can equip extra R200 pipe) | R600(Can equip extra R400,R200 pipe) |
2 | Inner Dimension(mm) | L500*D500*H500 | L900*D900*H900 | L1300*D1300*H1300 |
3 | Outer dimension(mm) | L1000*D700*H1400 | L1400*D1120*H1750 | L1800*D1520*H1950 |
4 | Flow(L/mm)) | 0-1L/min | 0-2L/min | 0-3 L/min |
5 | Turntable Size(mm) | ∮200 | ∮400 (Can equip extra ∮200 table) | ∮600 (Can equip extra ∮400,∮200 table) |
6 | Turntable Height | 150-250mm | 350-600mm | 550-1000mm |
7 | Swing Pipe Inner Diameter(mm) | 0.4 | ||
8 | Nozzle diameter (mm) | 15 | ||
9 | Swing Pipe Angle | 0-120º(IPX3),0-350º(IPX4)or customized | ||
10 | Swing Pipe Speed | 120° 4s, 360° 12s or customized | ||
11 | Swing Pipe Material | SUS304 stainless steel | ||
12 | Turntable Speed | 1-5r/min (Adjustable) | ||
13 | Protection device | Leakage, water shortage, short circuit | ||
14 | Voltage(V) | 220V | ||
15 | Power(KW) | 1 | ||
16 | Standard | IEC60529:1989+A1:1999,GB4208-2008,GB7000.1(IPX3,IPX4) | ||
Product feature:
1 For IPX3, IPX4 testing of products.
2 Equipment shell and turntable all use SUS304 # stainless steel plate manufacturing, to ensure long-term use is not rust.
3 Model structure: the use of double column structure, easy installation, swing tube rotation smooth.
4 Equipment at the bottom of the chassis with adjustable foot cup casters, easy to move and adjust the machine level.
5 Chamber with a big observing window, LED waterproof light equipped, can easy to check the sample during the test.
6 Swing pipe drive: the use of imported Panasonic servo motor (using servo motor with a small noise, speed and angle precision, etc.). Turntable drive: the use of domestic high-quality stepper motor, speed and angle can be set in the touch screen adjustable in the standard range of precision step-less adjustable, and can automatically control the forward and reverse rotation (suitable for sample with power test to prevent winding ).
7 Sample power supply power-off time can be programmed control: power failure 0-999 min ---- power 0-999min ---- power failure 0-999min (for the test in the test need to pass power test).
8, Touch control function: A, IPX3 test, B, IPX4 test, C, custom test, according to user's need to test, you can set the test time, rain angle, swing tube speed, turntable speed.
9 Test time can be set: 0-999min (adjustable).
10 Core control components using 7-inch touch screen + Panasonic PLC, all the electrical components use imported brands such as LG, Omron. Wiring process in line with national standards, electric board layout is reasonable, wiring firm, clear mark.
11 Filter measures: equipped a standard high-precision filter, can effectively filter impurities in tap water; filter can be replaced regularly.
