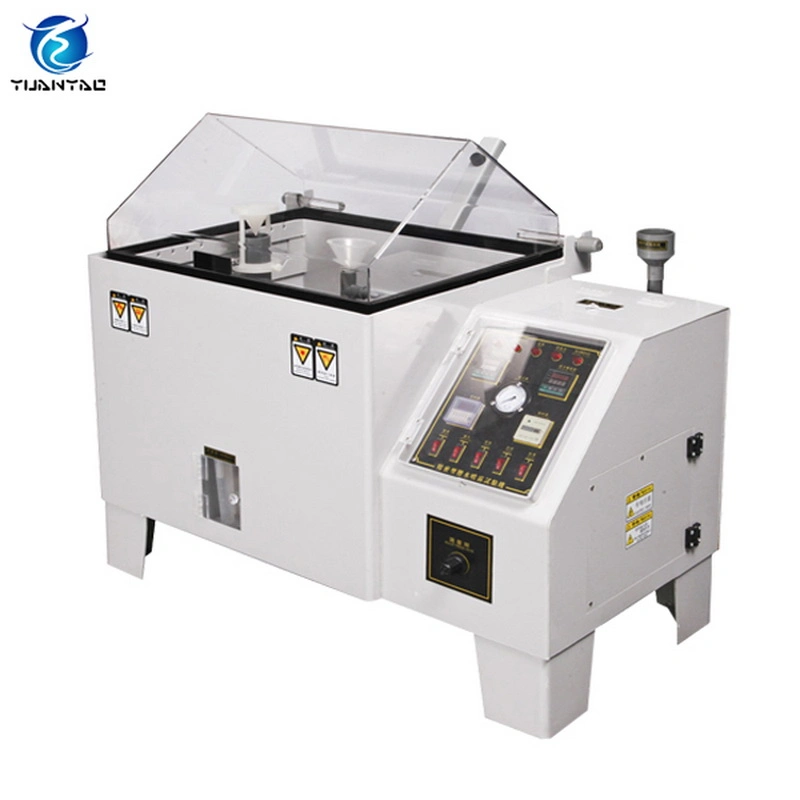

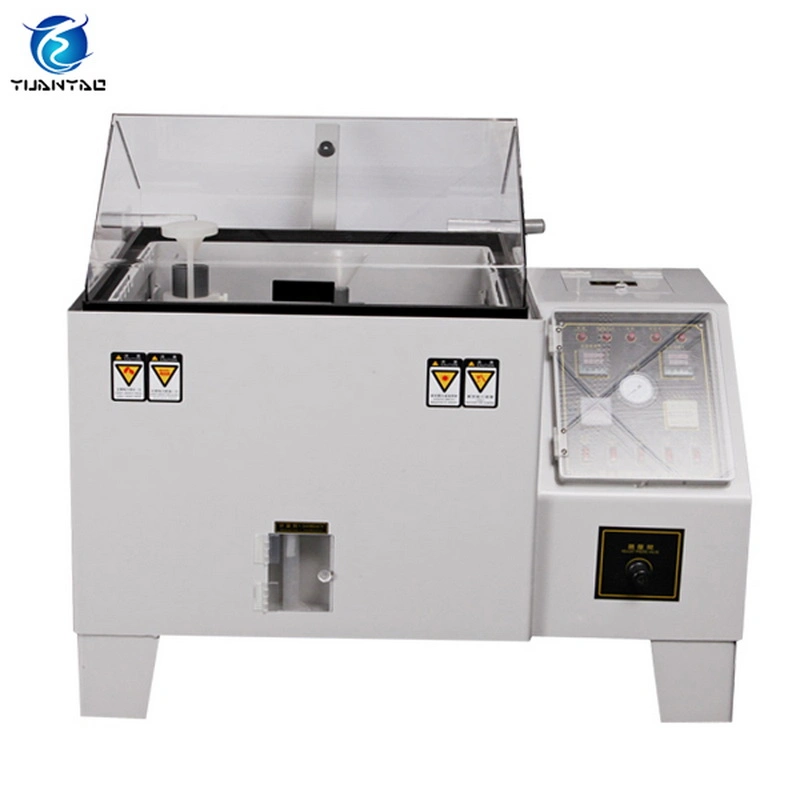

Intelligent Laboratory Salt Spray Test Chamber
Introduction&Application
Salt fog test instrument uses salt fog corrosion way to test the reliability of materials and protective coating to resist salt fog corrosion. It is widely applied to components and parts, electronic components, metal materials protective layer and other industrial products, etc.
Features
1. Automatic add water when water shortage, with a group of manually water
2. Special glass nozzle, guarantee non-crystalline block for 4000 hours
3. With dual over-temperature protection, water shortage warning, ensure safety use
4. Temperature device adopts digital display, SSR control, precision is 0.1 centigrade degree
Technical parameters: See the label.
| Specification | |||||
| Model | YSST-108 | YSST-270 | YSST-600 | ||
| Internal Dim.WHD(mm) | 600*400*450 | 900*500*600 | 1200*800*500 | ||
| External Dim.WHD(mm) | 1250*1050*910 | 1550*1210*1060 | 1700*950*1210 | ||
| Temp. Range | Chamber | Room temp.-- 50ºC,±0.5ºC | |||
| Air | Room temp.--63ºC,±0.5ºC | ||||
| Salt | Room temp.--50ºC,±0.5ºC | ||||
| Saturated Air Pressure(Kg/m) | 0.8--2.0 | ||||
| Spray Volume(m/80cm/hr) | 0.5--3.0 | ||||
| PH | Salt | 6.5--7.2 | |||
| Cu(CH COOH) | 3.0--3.2 | ||||
| Exter,/Inter.Material | P.V.C & P.P | ||||
| Systems | Salt Spray Veicle | Air+acid(base)liquid | |||
| Heating | SUS#304 & #316stainless steel heater+taflon | ||||
| Controller | Hydrometer,salinomerer,fog collector,glassbar | ||||
| Other Components | Digital electronic control+S.S.R | ||||
| Savety Devices | Overheating prevention circult-breaker,dehydration and overheating prevention mechanism,breakdown indicator light | ||||
| Power Source[K.W] | AC 1Ψ 220V 60/50Hz | ||||
| 1.1 | 1.5 | 3.5 | |||
| Comply with ASTM B-117, B-287,B-380,JIS D-0201, D-0205, H-8681, Z-2371, K-5400^^ | |||||
Package & Delivery
Package: Wooden cases, meet the international standard.
Delivery: In 15-20 working days.
Product details
Except Salt Spray Test Chamber, Guangdong Yuan Yao Electronics Technology Co., Ltd also can supply:
1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in environmental room, Thermal shock test chamber, High altitude low pressure simulation test chamber
2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone resistance test chamber, Burn in test equipment
3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer
4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.
